BT Range
The BT range of machines are rollover draw
swing head style design that utilizes both a low frequency, long stroke
anvil jolt for pre-compaction of the mold as well as a simultaneous jolt
squeeze for the final compaction. This fully automatic machine is entirely pneumatically
powered. |
![](../images/bt_range.jpg) |
![](../images/bt_range_dim.jpg) |
|

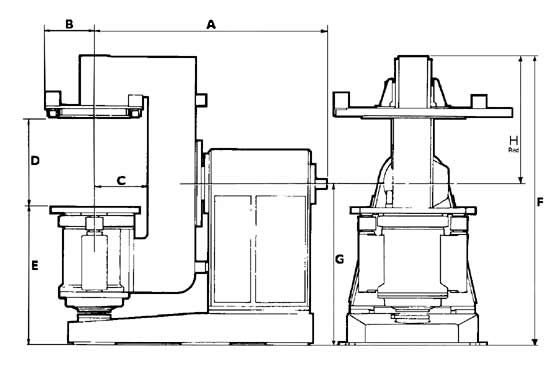

Overall Dimensions BT
Range
|
BT 5 |
BT 7 |
A |
72 in
1,829 mm |
98-5/8 in
2,505 mm |
B |
14-1/4 in
362 mm |
20-1/2 in
521 mm |
C |
18 in
457 mm |
23 in
584 mm |
DMax |
33-3/4 in
857 mm |
38 in
965 mm |
DMin |
24-1/4 in
616 mm |
30 in
762 mm |
E |
43-5/8 in
1,108 mm |
57-3/8 in
1,457 mm |
F |
99 in
2,514 mm |
121-7/8 in
3,096 mm |
G |
55-3/4 in
1,416 mm |
67-5/8 in
1,718 mm |
HRAD |
45-1/2 in
1,156 mm |
54-1/2 in
1,384 mm |
|
|
Technical Data
|
BT 5 |
BT 7 |
Jolt Capacity* |
1,500 lb
680 kg |
4,000 lb
1,814 kg |
Squeeze Force*
|
15,900 lb
7,214 kg |
40,000 lb
18,144 kg |
Squeeze Stroke |
12-13/16 in
325 mm |
16 in
406 mm |
Pattern Draw** |
12-13/16 in
325 mm |
16 in
406 mm |
Table Size** |
42 x 28 in
1,067 x 711 mm |
53 x 38 in
1,350 x 965 mm |
Net Weight |
10,192 lb
4,636 kg |
26,640 lb
11,176 kg |
* Jolt capacity
and squeeze forces are calculated at 90 psi (6.2 bar)
* * Alternative table
sizes, daylight openings and draw strokes available upon request.
BMM Weston reserves the right to
alter specifications contained in the above tables without prior notice.
|
|
|
